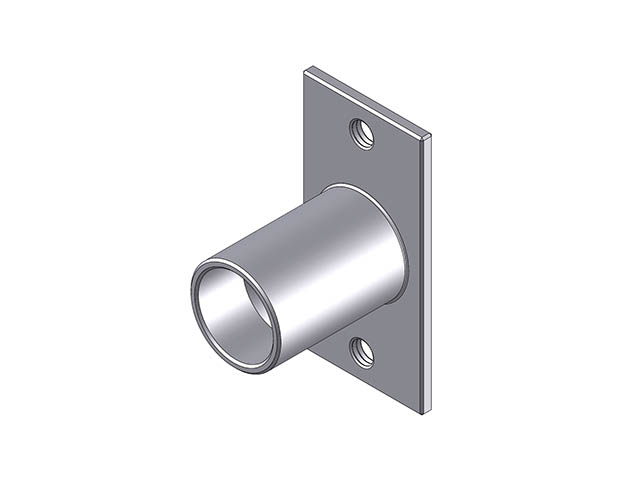

Ball Lock Pin Receptacle - Rectangle - 8 mm

Part Number: MREFR-08
Weight: 0 lbs 4 ozs
Use With Pin Dia: 8mm
Flange Style: Rectangle
Length - Overall: 19.89
Diameter - Body: 11.91
Height - Flange: 1.52
Length - between Mounting Hole Centers: 25
Width - Overall: 15.88
Thread - Internal - Tap: M4
Length - Overall: 31.75
Grip Length Reduction: 13

Part:MREFR-08

MREFR-08
