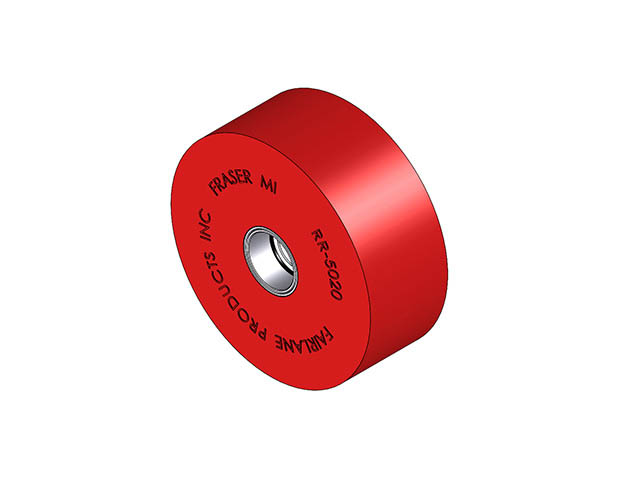

Solid Roller - Precision Sealed Bearing Mount - 80 Dur Urethane - 5.00 in Dia X 1.94 in Wide

Part Number: RR-5020-80UR-BPC
Weight: 1 lbs 11 ozs
Diameter - Overall: 5.00
Material: Urethane
Width - Overall: 1.94
Diameter - Inside - Bearing: .4997/.5000
Diameter - Inside - Roller: 1.1247/1.1250
Width - Bearing: .7406/.7500
No. of Bearings: 2
Bearing Type: G
Durometer: 80

Part:RR-5020-80UR-BPC

RR-5020-80UR-BPC

Download

Download CAD models here
